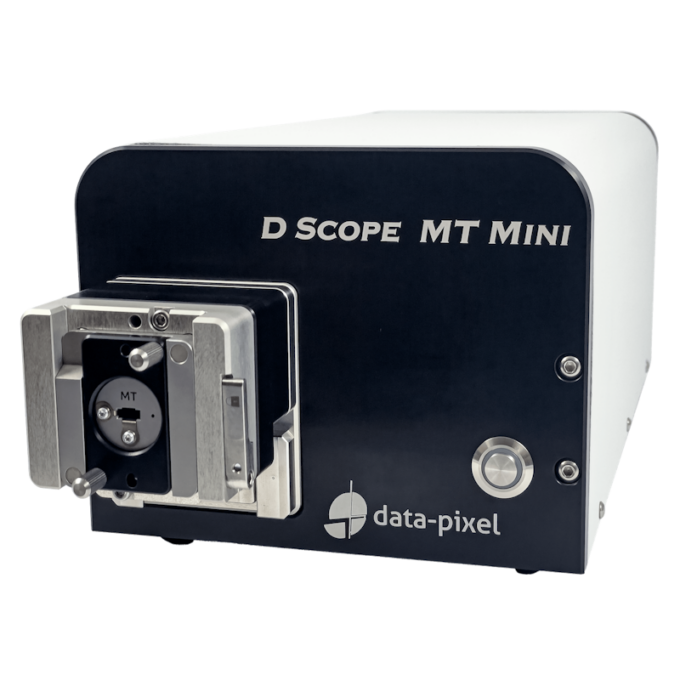

D SCOPE MT Mini
Description

DEEP LEARNING INSIDE

Designed for inspection of MPO connectors, patch-cords or bulkheads, the D Scope MT Mini detects and precisely measures the defects on the optical fiber end-faces. Using Deep Learning technology associated with a high-resolution optical bench, the scratch and defect detection thresholds are significantly improved compared to traditional software.

Blink Deep Learning can be taught all types of defects indefinitely, including atypical shapes, giving this equipment unmatched capacity and detection reliability.

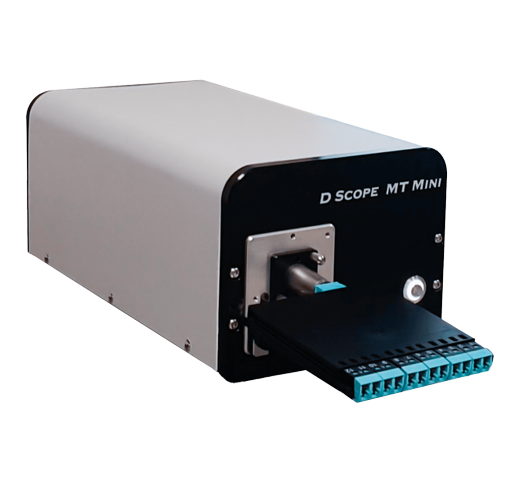

The Dscope MT Mini is equipped with High Resolution optics, its smaller foot print and new design allows to inspect connectors inside cassettes with a very long working distance.

The Dscope MT Mini is a very versatile microscope compatible with all Multi-Fiber and Single-Fiber connector types both discrete connectors and cassettes of all shapes.

Order options
D Scope MT Mini unit
with BLINK INSPECTION MT
70-DSMT-V1-A10-20

Accessories for cassettes/modules :

Sliding mount 30-MT-004407
Mount for patch cord flanges 30-MT-002999
Flange for MT 12/24/16/32 PC/APC 30-FL-002181
Flange for MPO 12/24/16/32 PC/APC 30-FL-003277
Flange for SC PC/APC 30-FL-003483
Flange for LC PC/APC 30-FL-003482
Flange for LC Duplex PC 30-FL-003748



Accessories for cassettes/modules :

Universal cassette holder 30-MT-004408
Flange MPO Long Working Distance PC 30-FL-004404
Flange MPO Long Woprking Distance APC 30-FL-004405
Flange SC Duplex Long Working Distance PC 30-FL-004406
Key features
  • Testing of PC/APC MPO connectors in cassettes/modules or in patchcord form

  • Testing of PC/APC single fiber connectors

  • Automatic Pass/Fail defect analysis on fiber optics

  • Automatic Pass/Fail cleanliness analysis on MPO connector endface

  • Deep Learning inside with defect teaching possibility

  • High resolution metrology equipment

  • Compliance with Industry Standards as IEC 61300-3-35 ed.3

  • Intuitive Blink software with database connectivity

  • Compatible with desktop PC, laptop, tablet PC

Specifications
Magnification (fiber screening) x 480*

Defect size detection (μm) :

0.5
Outputs : USB 3.0

Power source :

12 V

Dimensions HxWxL (mm):

130x162x315

Weight (kg) :

5.35

*On 24” screen, 96 dpi
