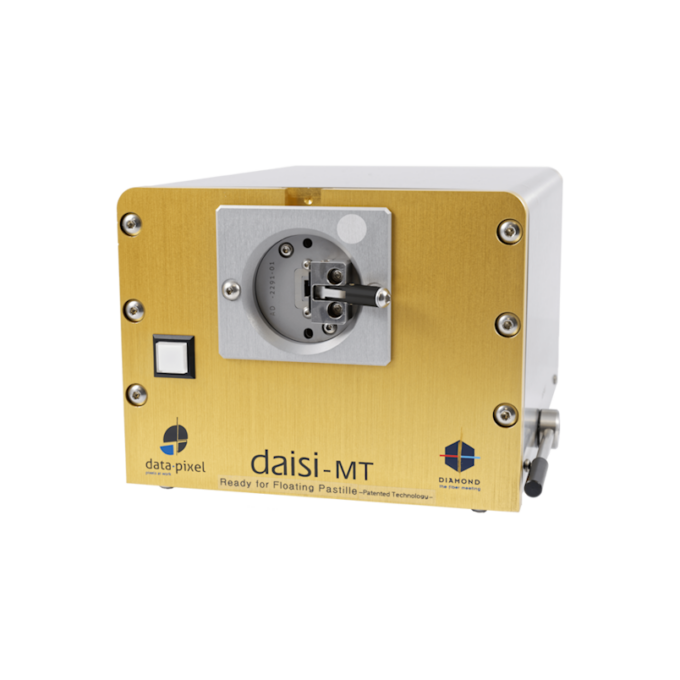

DAISI MT FP

Automated interferometer with Floating Pastille Technology

DAISI MT FP
Description

The Daisi MT FP combines the Daisi MT-V3 with the new Floating Pastille fixture technology from DATA-PIXEL (patent pending).

This major technological breakthrough for multi-fiber connector fixtures is perfectly suited for highly accurate X/Y endface angle measurements.

With the Floating Pastille fixtures, measurement results are completely independent from the influence of the fiber optic cables and the operator. Floating Pastille is perfectly suitable for the inspection of connectors mounted with heavy cables. With the help of the Floating Pastille, the Daisi MT-V3 is now easier to operate, without compromising any of its existing features : accuracy of measurements, reproducibility, speed, robustness. No calibration is now required, as it is factory set, per fixture, by DATA-PIXEL.

Click here to discover the Floating Pastille principles

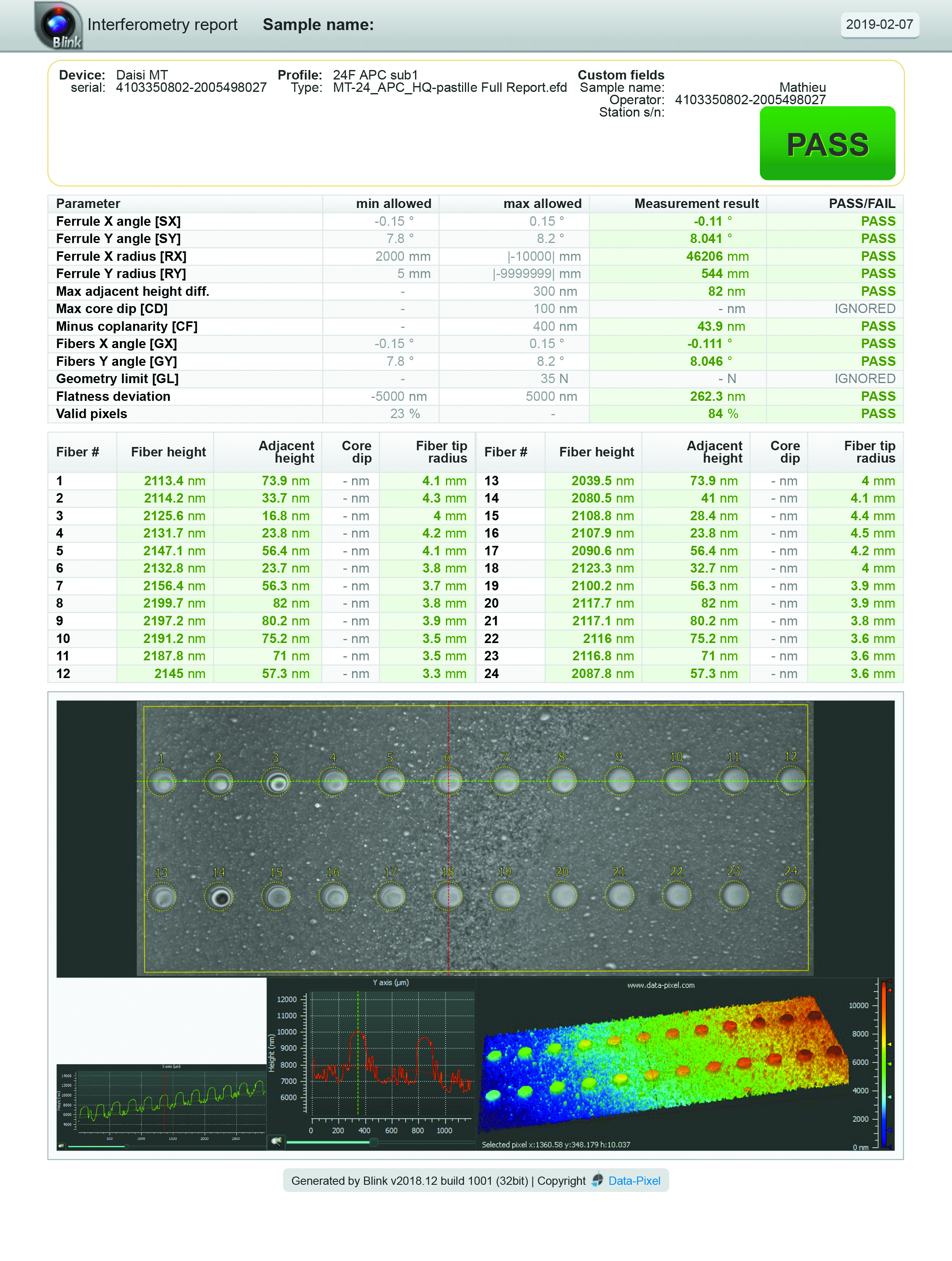

Measurement

X / Y ANGLES MEASUREMENTS :

Without Floating Pastille fixture

With Floating Pastille fixture

Order options
DAISI MT FP unit with:
– Blink Interferometry

70-DAMT-V3-A02-01

Flange Floating Pastille Female MT 12/24

30-FL-002323

Flange Floating Pastille Female MT 16/32

30-FL-002325

Adapter MPO for MT12/24 ferrules

10-AD-001017

Adapter MPO for MT16/32 ferrules

30-AD-001776

Flange Male MT 12/24

10-FL-001354
Flange Male MT 16/32

10-FL-001729

Flange Female MT 12/24

30-FL-001355

Flange Female MT 16/32

30-FL-001357
Key features
  • Combined White-Light and Red-Light phase-shifting interferometer for precise tip radius and core-dip measurement
  • Fast Autofocus that simplifies operator’s handling
  • Very high accuracy and reproducibility for small X/Y angles measurements
  • Suitable for field heavy cables, standard small cables MTP/MPO connectors and pigtails with MT ferrules
  • No calibration required
  • Floating Pastille Flange is compatible with existing DAISI MT units*
  • Closed-loop high precision 30 microns Z-scan
  • Vibration insensitive
  • High resolution optics and camera for a better resolution
  • Large field of view able to scan up to 96 fibers

* existing units may need to be upgraded, depending on their configuration/version

Specifications
Measurement Method :

Phase shifting + Z scanning

Connector Type (PC/APC) :

MT12/24 & MT16/32

Illumination :

White light + Red light

Measurement speed (sec.) :

6 (MT12)

Lateral resolution (μm) :

 2.5

Field of view (mm) :

 5.6 x 5.6

Power source :

 12 V

USB outputs :

USB 3.0 + USB 2.0

Weight (kg) :

 6.3

Dimensions HxWxL (mm):

133 x 171 x 244
Datasheet
PERFORMANCE :
Parameters Repeatebility* Reproducibility** Range

X/Y angles (°)

0.001

< 0.01

± 1 (PC or APC)

Fiber height (μm)

0.003

0.01

 Up to 20

* values calculated from 50 measurements without interaction on connector between measurements
** values calculated from 50 measurements while removing and inserting connector in ferrule holder between measurements
