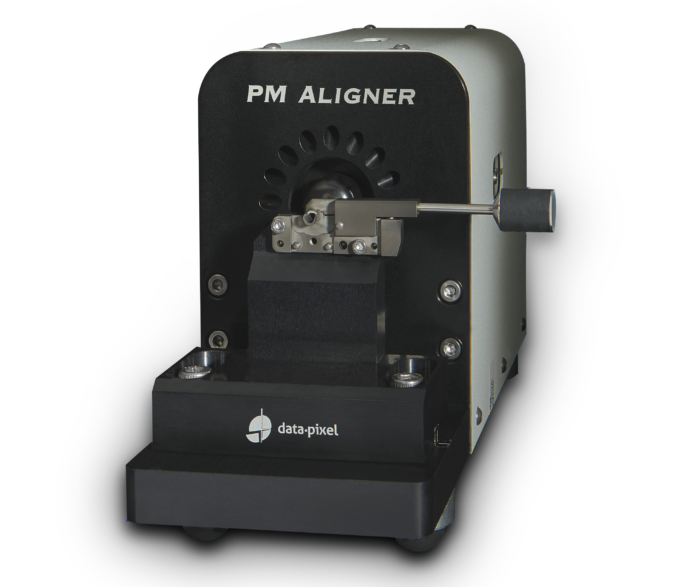

PM ALIGNER-V2
Description

PM Aligner-V2 is the simplest way to orientate precisely a PANDA Polarization Maintaining fiber inside a connector or ferrule.

With a long working distance, PM Aligner-V2 allows the operator to work manually around the ferrule of the connector. After positionning, the curing phase becomes easy to realize without affecting on the PM fiber alignement.

With Blink PM Alignment software, the PM Aligner-V2 will measure and display in real time the angular alignement of the stress elements.

If the cable contains several PM optical fibers it is not easy to turn the optical fiber in the ferrule. Thus Data-Pixel developed accessories that keeps the optical fiber fixed and rotates the ferrule or the connector.

Holder #OP P 1 7 1 – H L

Equipped with a digital indicator and a rotation stage in order to precisely monitor the angle position of the connector. The fibre optic cable is clamped on the Mechanical plate.

Order options

PM Aligner-V2 unit with :

–  Manual focus

–  Blink PM-Alignment

–  1 set including for 1.25mm or 2.50mm connectors (1 sleeve holder, calibration stub, adapter)

71-PM00-V2-M10-00
Holder 1.25mm ferrules, PM (sleeve-type)

30-HL-000778

Holder 2.50mm ferrules, PM (sleeve-type)

30-HL-000779

Calibration fiber stub, 1.25mm, for PM fiber calibration

30-RE-000752

Calibration fiber stub, 2.50mm, for PM fiber calibration

30-RE-000753

Adapter, 1.25mm LC

30-AD-000732

Adapter, 2.50mm SC

30-AD-000739

Adapter, APC, 2.50mm, both FC Narrow and FC Wide compatible

30-AD-002476

Adapter, 2.50mm FC Wide

30-AD-000738

Adapter, 2.50mm FC Narrow

30-AD-000737

Key features
  • Measures PANDA style fibers
  • Long working distance
  • Automated and real time measurement
  • Easy calibration with Blink PM Alignment
  • High speed USB 2.0 for live digital image
  • Measurement data exported in standard CSV file
  • Database connectivity
  • Measurement report in HTML format
  • Compatible with desktop PC, laptop, tablet PC
Specifications

Magnification :

x 400

Field of View (mm) :

0.5 x 0.7

Light source :

White light

Focus :

Manual

Outputs :

USB 2.0

Power source : External 12V

Weight (kg) :

2.7

Dimensions HxWxL (mm) :

130 x 90 x 260
