D SCOPE MT
Description

The new D SCOPE MT microscope for MTP/MPO connectors is the fastest on the market.

In the same measurement cycle, D Scope MT checks every optical fiber surface condition, and allows the operator to control the cleanliness of the connector endface and guideholes.

The fully automatic D SCOPE MT is the ideal instrument for checking the conformity of connectors to Industry Standards.

With very high measurement accuracy, D SCOPE MT has been designed for use in high volume manufacturing environments or the most demanding laboratories.

Measurement
Connector typo Fiber screening only With end face view
MT12 3 sec. 5 sec.
MT48 5 sec 7 sec
Order options

D Scope MT unit with :
– Blink Inspection MT
– 2 flanges (MT + MPO 12/24)

71-DSMT-V1-A10-00

Flange MT Male/Female, PC/APC, 12/16/24/32 fibers

30-FL-002181

Flange MPO Male/Female, PC/APC, 12/24 fibers

30-FL-002182

Flange MPO Male/Female, PC/APC, 16/32 fibers

30-FL-002183

Flange Single fiber 1.25 mm PC/APC

30-FL-002314

Flange Single fiber 2.50 mm PC/APC

30-FL-002315

Key features
  • Testing of PC/APC connectors and ferrules from 1 to 64 fibers
  • Ultra-fast measurement time

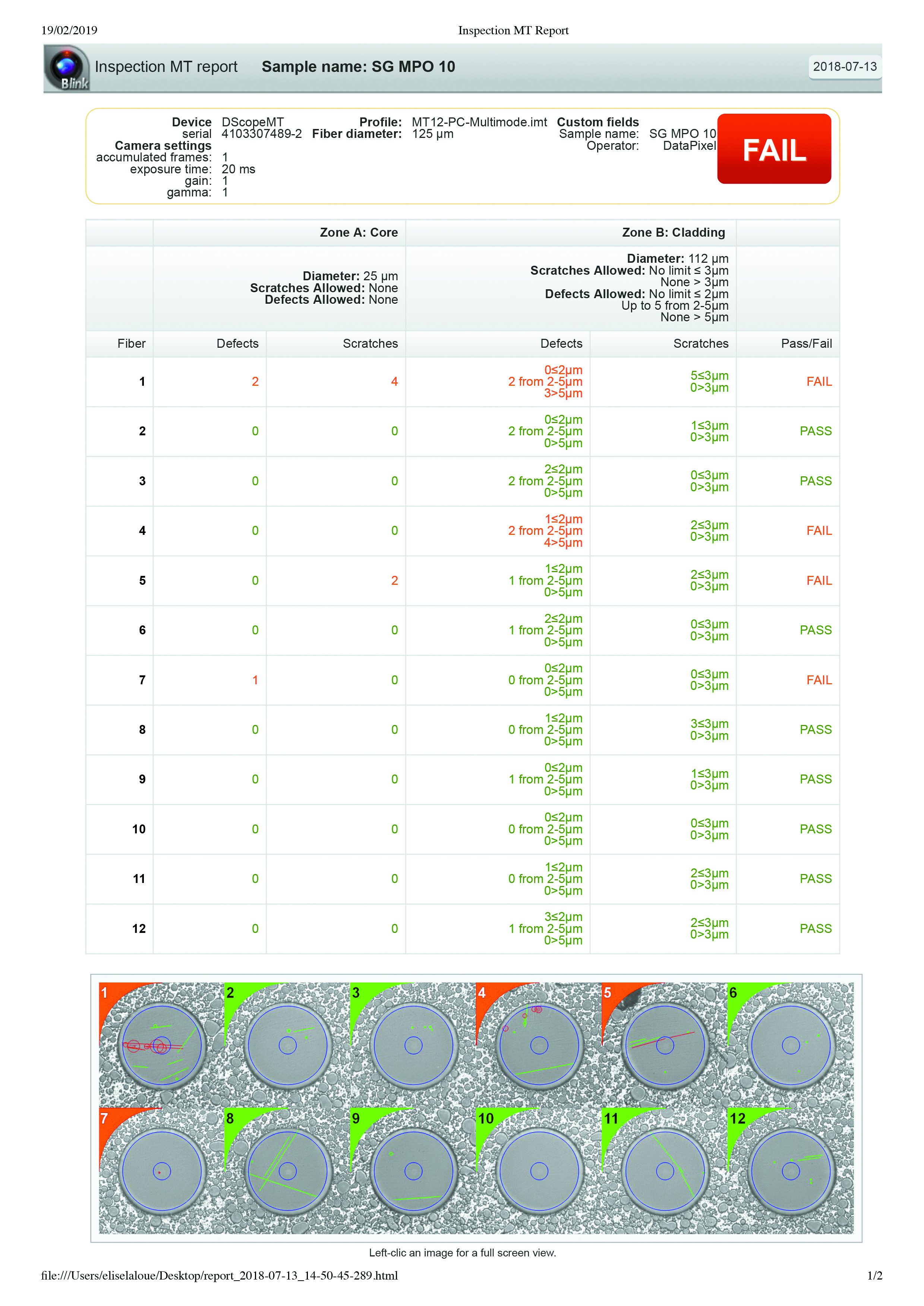

  • Automatic Pass/Fail defect analysis
  • Automatic focus adjustment
  • High resolution optics with defect size detection of 0.5μm
  • Compliance with Industry Standards as IEC 61300-3-35

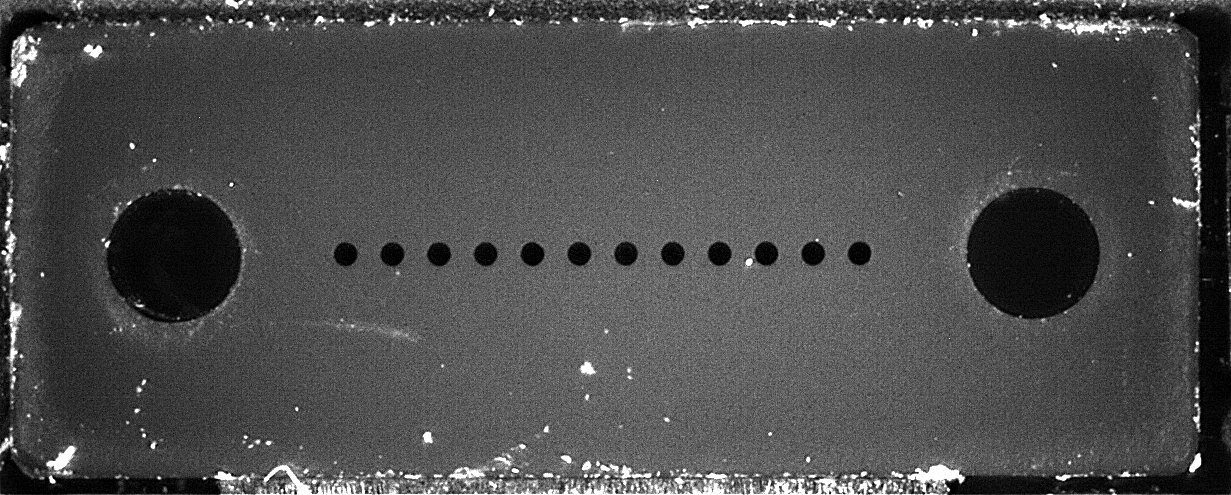

  • Real time full connector endface view
  • Intuitive Blink software with database connectivity
  • Compatible with Desktop PC, laptop, tablet PC
  • USB powered – no external power supply needed
Specifications
Magnification (fiber screening) x 400

Defect size detection (μm) :

0.5
Outputs : USB3.0 + USB 2.0

Power source :

12 V

Dimensions HxWxL (mm):

105x230x285

Weight (kg) :

6.6
